SMD production system SMT lead free reflow oven for LED PCB manufacturing

  • >=1 Sets
    $8,600.00
Model Number:
M6
Lead Time:
Quantity(Sets) 1 - 30 >30
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Reflow Solder
Applicable Industries:
Manufacturing Plant
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jaguar
Usage:
PCB Soldering
Voltage:
380V
Weight:
900KG
Dimensions:
3600*1100*1490mm
Rated Duty Cycle:
100%
Rated Capacity:
18KW
Current:
50/60Mhz
Certification:
CE ISO
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Warranty:
1 Year
Heating Zones:
6 Zones
Heating Zone Length:
2500mm
Temperature range:
Room Temperature ~ 300
Max PCB Width:
50-350mm
Heating method:
Hot Air
Max. Width of PCB:
350mm
Mesh belt width:
400mm
Total power:
18kw
Temp. control method:
PID close loop control & SSR driving
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
vacuum packing and plywood case
Port
shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 30 >30
Est. Time(days) 30 To be negotiated
Product Description

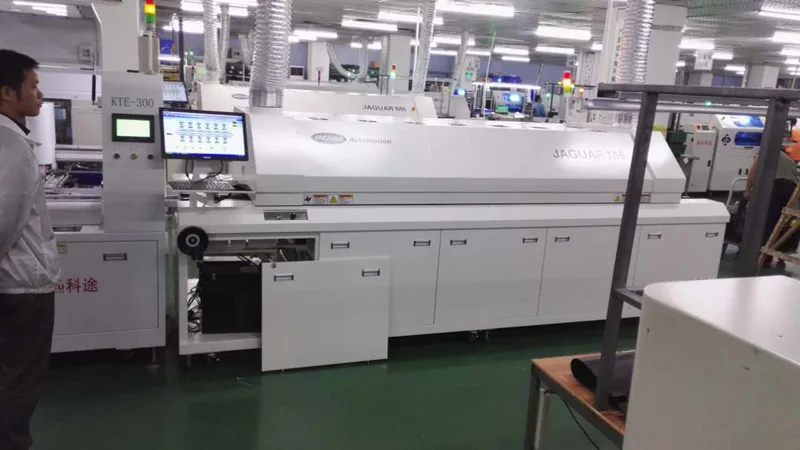

Hot Air Convection PCB assembly 6 Zones Reflow Oven M6

Reflow oven introduction:

 1. The brand computer and Siemens PLC intelligent control system, high precision temperature control is ± 1-2 ℃ (if the computer crash accident, it can realize off-line work, do not affect production) and to ensure that the control system is stable and reliable;

2. Windows XP operating interface with powerful and simple operation.

3.In order to ensure safety and reliability, the cylinder body can be lift up automatically.

4. Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which ensure smooth PCB transport. Synchronous guide transmission mechanism and automatic SMT machine online connection ensure that guide adjustable wide precision and high service life.

5. Automatic control lubrication system and automatic lubrication transmission chain.




Reflow oven Specification:

Model

Jaguar M6





Reflow oven Heating System

Number of heating zones

Up 6/ bottom 6

Number of cooling zones

2

Length of heating zones

2500mm

Heating mode

Hot air











Reflow oven Conveyor System

Max. Width of PCB

350mm

Mesh belt width

400mm

Transmission Direction

L→R(option: RL)

Transmission Net Height

900±20mm

Transmission type

Mesh and chain

Range of rail width

50-400mm

Conveyor speed

0-1000mm/min

Auto/manual Lubrication

Standard

Fixed rail side

Front rail fixed(option: rear rail fixed)

Components high

Top and bottom 25mm

















Reflow oven Control system

Power supply

5 line 3 phase 380V 50/60HZ

Total power

18KW

Starting power

25KW

Normal power consumption

4-7KW

Warming time

20 mins

Temp. setting range

From room temp. To 300℃

Temp. control method

PID close loop control & SSR driving

Temp. control precision

±1℃

Temp. deviation on PCB

±2℃

Data storage

Process Data and status storage(80GB)



General

Dimension(L*W*H)

3600*1100*1490mm

Weight

900kg

Color

Computer gray



Lead free hot air convection Reflow oven detail

 Control System And Heating System:

1.Stability control system;PID closed loop controls,sampling interval of 0.2sec,

2.independent heating zone shutdown features.Built-in standby power supply.

Reliable Conveyor System:

 1.The rail is dealt with hardened process to make it more stability.

 2.The conveyor chain adpoted with single Pin-plate design,Simple and practical.

Packaging & Shipping

 Reflow oven Packaging Details:Reflow Oven Vacuum package and Plywood case

 Delivery Time:10 Days

Company Information

Company information:

       Shenzhen jiebao automatic equipment co., LTD. is a high-tech enterprise engaged in R&D, production and sale of lead-free electronic equipment, such as lead-free reflow soldering, lead-free wave soldering machine,solder paste printer, SMD pick and place machine, chip mounter etc.

 Jagauar Office:





 Jiebao Workshop:





 Our advantages:



 Reflow oven Certificate:



 The exhibition:

Hot Product :

FAQ

1) This is the first time I use this kind of reflow oven, is it easy to operate?

There is english manual or guide video that show you how to use machine.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4)Why choose us ?

Best price & Best shipping & Best service !.
